ESP-DF HINGED w. FF and H1 RETAINERS

Please contact us for pricing information.
  • Assembly ID: ESPH-DF-FFH1DF
  • Depth: 12.5″
  • Visible Faces: Double Face
  • Face Type: Rigid
  • Frame Type: Hinged
  • Retainer Style: H1

Description

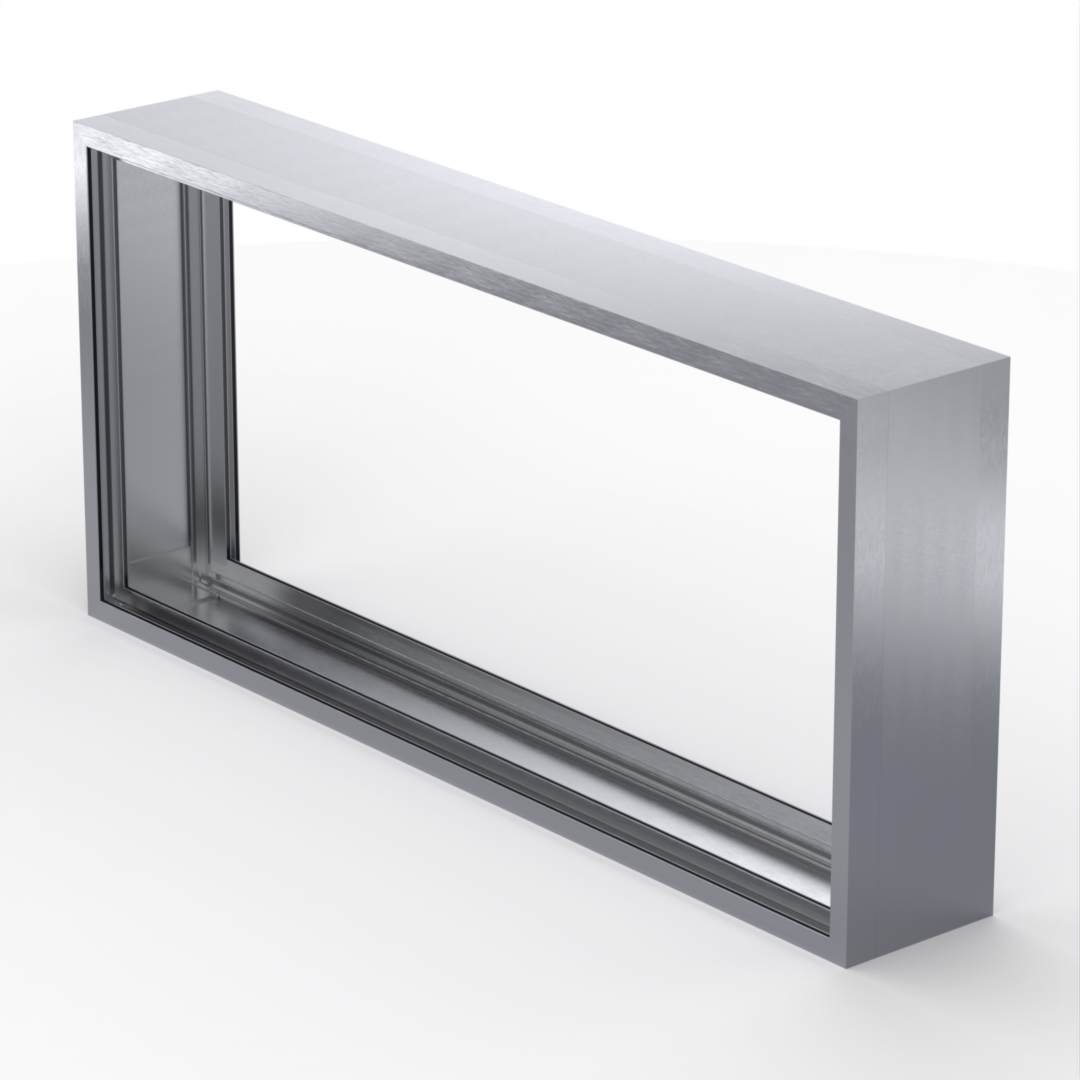

The Excellart ESP-DF Hinged with FF Hinged and H-1 Retainers is designed and engineered for providing a quickly assembled double rigid face aluminum sign cabinet with the ability to be double layered. This kit assembles into a 12.5″ deep cabinet and features an integrated hinged design on the top, providing convenient access into the inside of the sign cabinet for easy installation and removal of sign faces, power supplies, and other internally housed components. With the addition of the H-1 Retainer, this cabinet style is typically used for changeable copy text signs where the first face is a clear protective layer.

Additional information

Weight/FT

4.22

Visible Faces

Double Face

Face Type

Rigid

Frame Type

Hinged

Retainer Style

H1

Trim Style

N/A

Depth

12.5

Alloy Type

6063

Temper

T6

ESPH-DFSPLIT-FFH1DF.pdf
