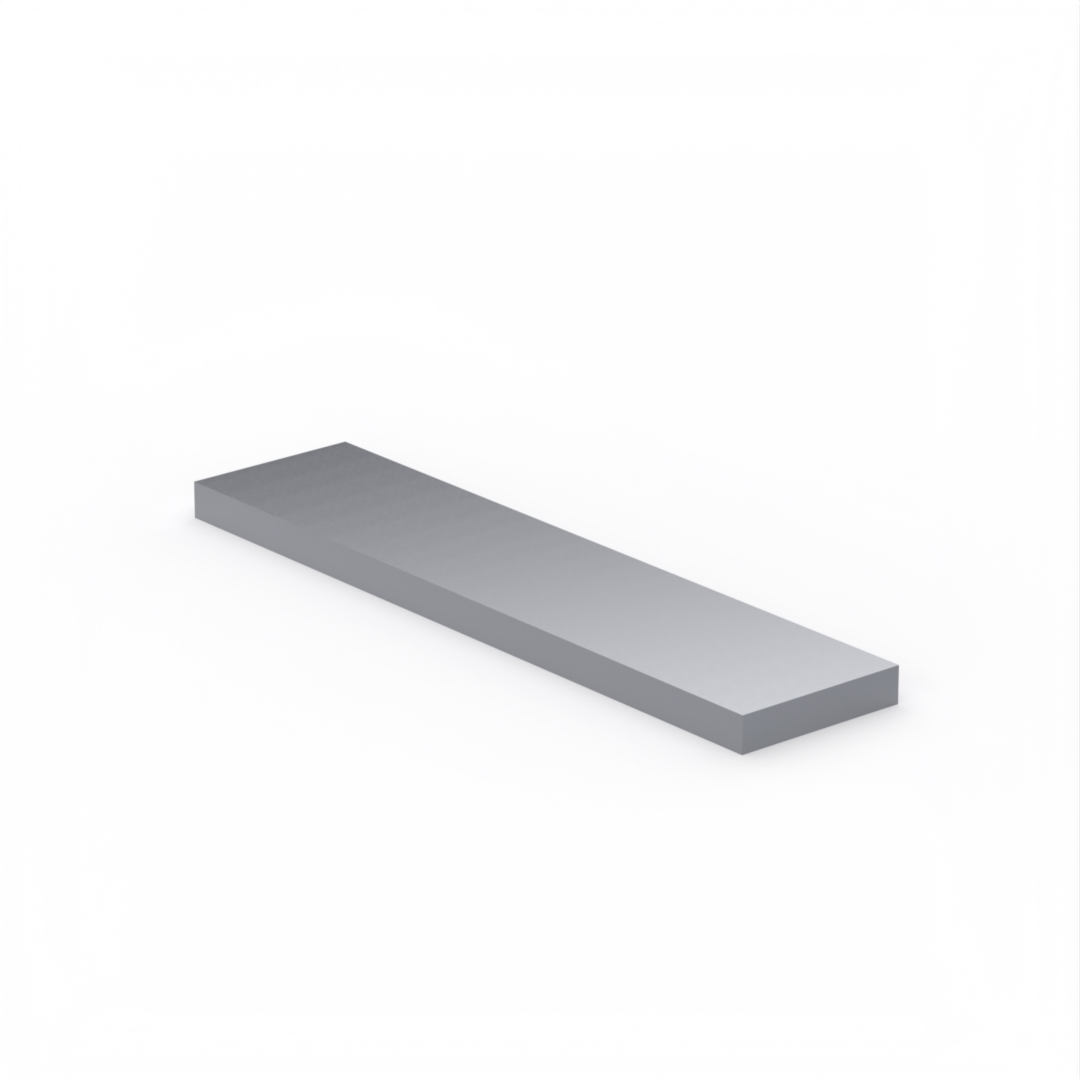

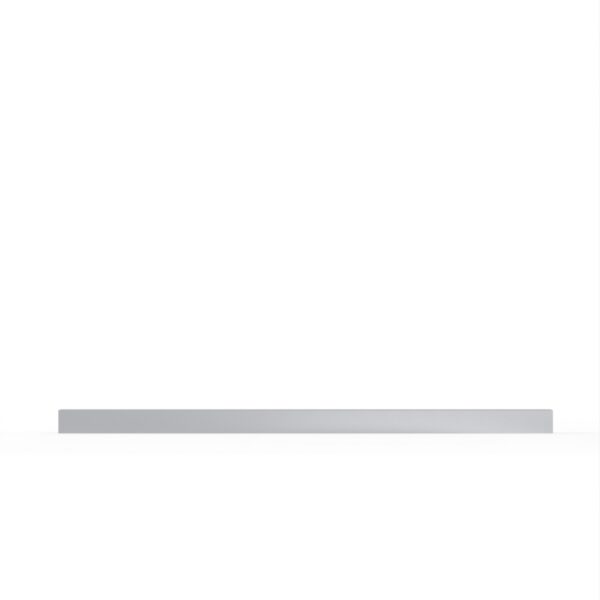

ESP-9, SF-9, SF, DF Hinged, C Splice Plate

Please contact us for pricing information.

Product Number: 1280476

Description

The ESP-9, SF-9, SF, DF Hinged, C Splice Plate is crafted from domestically sourced 6063-T6 architectural-grade aluminum. We provide a comprehensive range of splice plates, designed to integrate seamlessly with our frame systems.

Technical Specifications

Additional information

Length/Piece	3/16" X 4" – 5-15/16"
Alloy Type	6063
Temper	T6

Resources

4-x-.188-SPLICE-PLATE.SLDPRT

Download
